Cinterion® LGA DevKit
Designed as a generic development adapter for our cellular LGA IoT modules.
The main advantage is that you can work directly with our LGA modules without the need for evaluation modules and large, complicated development platforms.
Try now our IoT development tools and join our happy LGA DevKit customers!

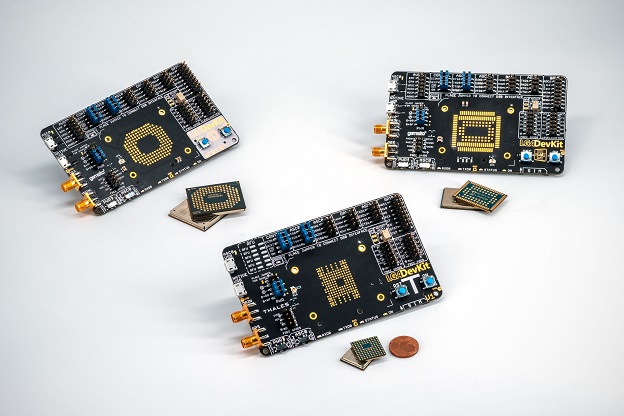

Three PCBs
For our IoT module footprints, we provide three dedicated PCBs. The package contains everything to start immediately! You only need to supply a SIM card and a module.
The 80-way board-to-board connector on the PCBs' underside allows you to combine the LGA DevKit with classic development boards such as the DSB75/mini. With these, you can access additional module interfaces such as two RS232 ports, analog/digital audio, or a second SIM cardholder.

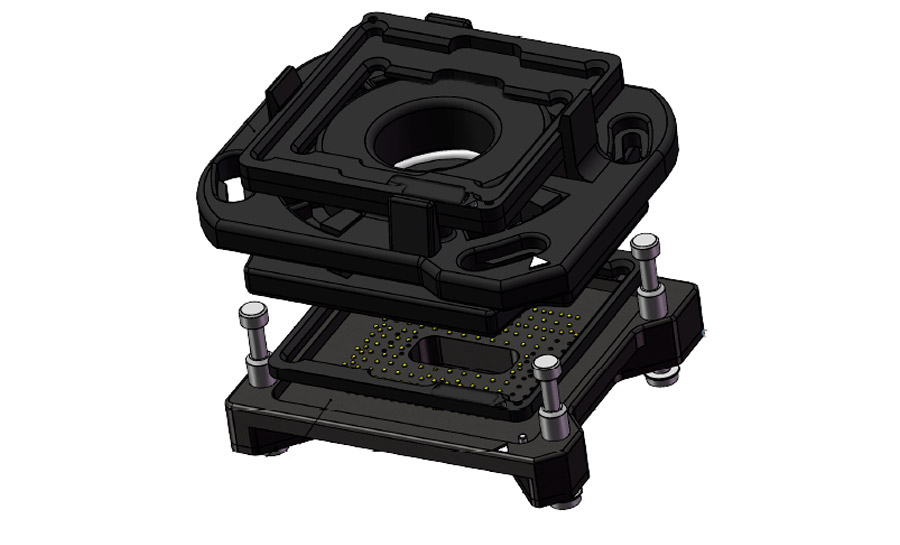

LGA Sockets
With our new Cinterion® LGA Socket SML, we can now support most of all our IoT modules.
With the Cinterion® LGA Socket T, you will have one socket for the complete Cinterion® Things family.
All the necessary fixing frames are included.
Cinterion® LGA Socket SML adapter fits LGA DevKit SM & LGA DevKit L.
Cinterion® LGA Socket T adapter fits Cinterion® LGA DevKit T.

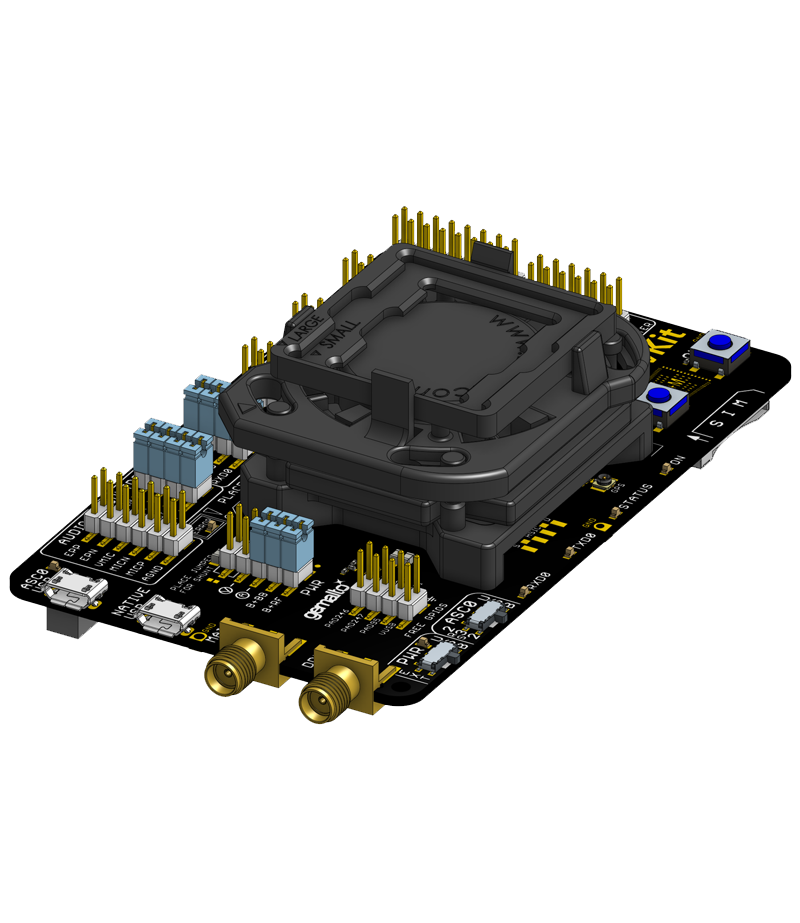

LGA DevKit main features
Let's summarize again what makes this LGA DevKit so special
Future proof
Supports current and future IoT LGAs, thus makes evaluation modules and complex development boards unnecessary.
A simplified concept with sophisticated options
Minimized hardware impacts, great module inter-compatibility, in-depth hardware-level analysis.
Fully featured packages
Includes everything you need to start working with LGA modules straightaway.
Manufacturing / in the Factory
Allows ad-hoc incoming module inspection for your manufacturing partners.
Would like to know more?
In case you are missing something or are looking for further explanations, please join our IoT Developer Community and let us know.
| LGA DevKit SM LGA DevKit L |
LGA DevKit T |
|---|---|
 |
 |
| Module | Details | File |
|---|---|---|
| BGS5 | Windows Driver for USB | Download |
| EHSx | Windows Driver for USB | Download |
| ELS31 | Windows Driver for USB | Download |
| ELSx | Windows Driver for USB | Download |
| PLS62-W | Windows Driver for USB | Download |
| LGA DevKit SM | LGA DevKit L | LGA DevKit T | |
|---|---|---|---|
| Socket SML | Socket SML | Socket T | |
| (S)mall | (M)edium | (L)arge | (T)hings |
| BGS12 | EHS6 | PDS5 | TX62 |
| BGS2 | EHS8 | PDS6 | TX82 |
| BGS5 | ELS61 | PLS8 | |
| EHS5 | ELS62 | PLS62 | |
| ELS31 | ELS81 | PLS63 | |
| ENS22 | PLS83 | ||
| EMS31 | |||
| EXS62 | |||
| EXS82 | |||
You would like to order?
We have worldwide distribution partners who will gladly take care of your order. Below you will find the order numbers you need.
| LGA DevKit SM | LGA DevKit L | LGA DevKit T |
|---|---|---|
| L30960-N0111-A100 | L30960-N0112-A100 | L30960-N0113-A100 |
| LGA Socket SML | LGA Socket T |
|---|---|
| L30960-N0110-A100 | L30960-N0114-A100 |
Cinterion® Module DevKit
The Cinterion® DevKit is designed as a generic development board for our celluar LGA IoT modules.
You don't need the flexibility of our sockets, but still all the features of the LGA DevKit? For this we offer various Cinterion® Module DevKits with pre-soldered IoT modules from our portfolio.
