Introduction

This family of large format dynamic X-ray detectors are designed for Digital Radiography & Fluoroscopy systems. They are integrated in patient side R&F table and remote-controlled fluoroscopy tables. They rely on proven expert technologies from THALES to deliver fast, high-quality images with a large field of view that support quality care.

Features:

  • Multi-purpose: the wide range of imaging modes makes the detectors suitable for many types of examinations from radiography to fluoroscopy and thomosynthesis* (*when appropriately integrated in a system by systems' manufacturer).

  • Top-quality digital images: Thales proprietary scintillator offers high X-ray absorption while the wide variety of modes helps system manufacturers managing X-ray dose.
  • Large and adjustable field of view: 17" x 17" (43cm x 43cm).

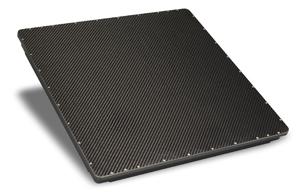

Introducing Pixium RF 4343 F5



Pixium© RF 4343 F5 is the 5th generation Pixium© RF 4343. Since 2007, the detector has gone through several optimisations and arrives at Generation 5 in 2020. This latest release offers an improved image quality, greater speed and a fast connectivity.

  • Enhanced Image Quality: PIXIUM© RF 4343 F5 is optimised for advanced fluoroscopic uses. Its high frame rates (up to 30 fps 2x2), supported by a 10-Giga bit connectivity, are suitable for tomosynthesis and CBCT acquisitions.
  • Ultimate Integration: without a processing unit the integration is easier and faster. Pixdyn software package allows the use of all of Thales' dynamic detectors in one unique platform.

  • Fast cold start: hardware optimisation delivers a cold start in less than 10 minutes after the power up, increasing hospital workflow efficiency and ecological optimisations.

  • Unique memory effect correction: a patented reset light function is implemented on the detector to decrease ghosting on the X-Ray Image.

Pixium RF 4343 FL4

Pixium© RF 4343 FL4 is the state-of-the-art flat panel detector for radiography and fluoroscopy systems. Its performances and its versatile imaging modes accomodate a wide range of clinical examinations* (*when appropriately integrated in a system by systems' manufacturer).

Features:

  • Multi-purpose: the wide range of imaging modes and its fast frame rate (15 fps, 2x2) make the PIXIUM© RF 4343 FL4 suitable for all examinations currently performed with a radiography to fluoroscopy table* (*when appropriately integrated in a system by system manyfacturer).

  • Cost-effective and versatile solution to easily transfer to digital imaging.
  • Large and adjustable field of view: 17"x17" (43cm x 43cm).

  • Top quality images** (**DQE of 73%): PIXIUM© RF 4343 FL4 benefits from patented Thales scintillator, which offers high X-ray absorption. Selectable imaging modes for pulsed fluoroscopy help controlling the radiation exposure* (*when appropriately integrated in a system by system manufacturer).
